Titan Motorcycle Co. of America Dakota Digital Speedo

Titan Motorcycle Co. of America Dakota Digital Speedo

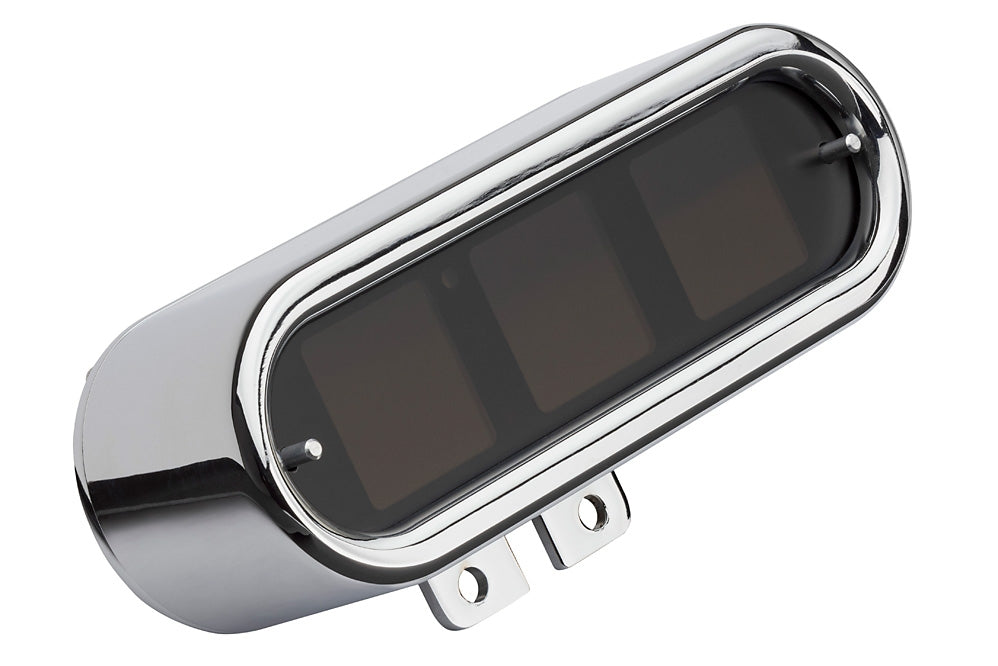

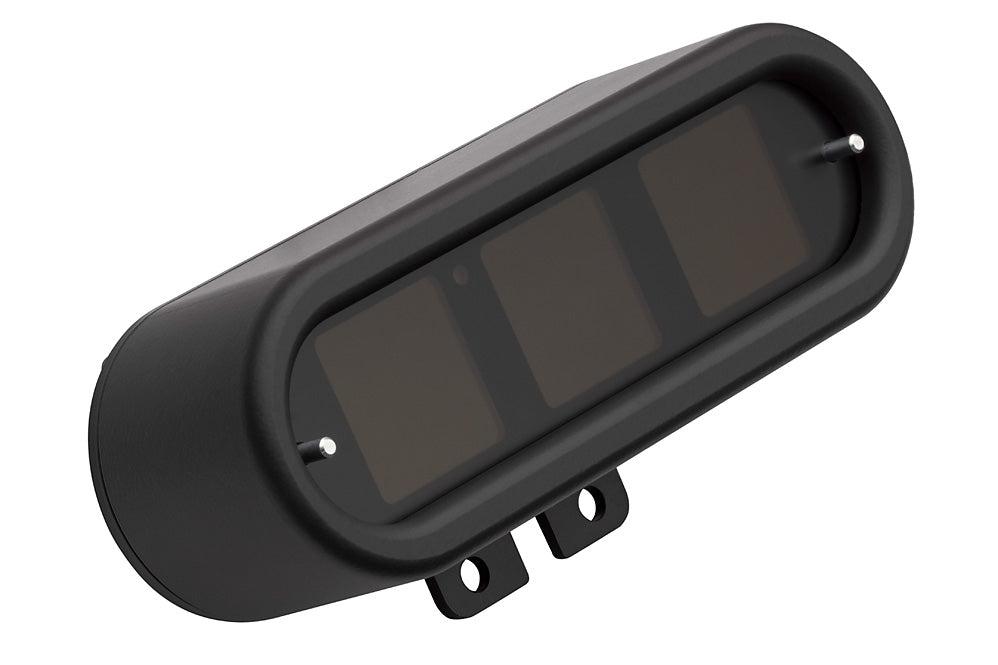

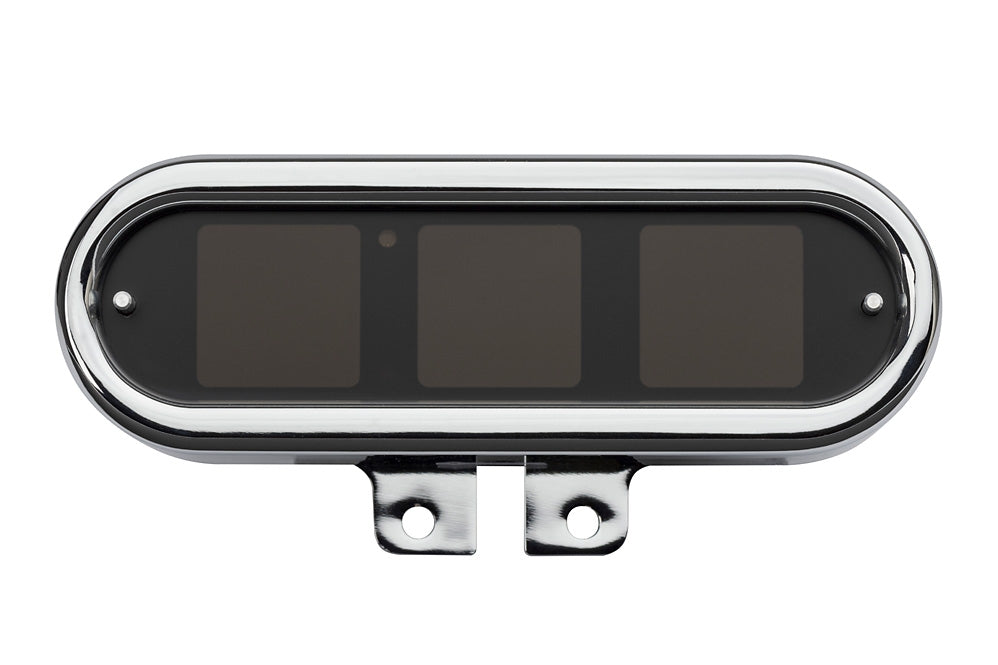

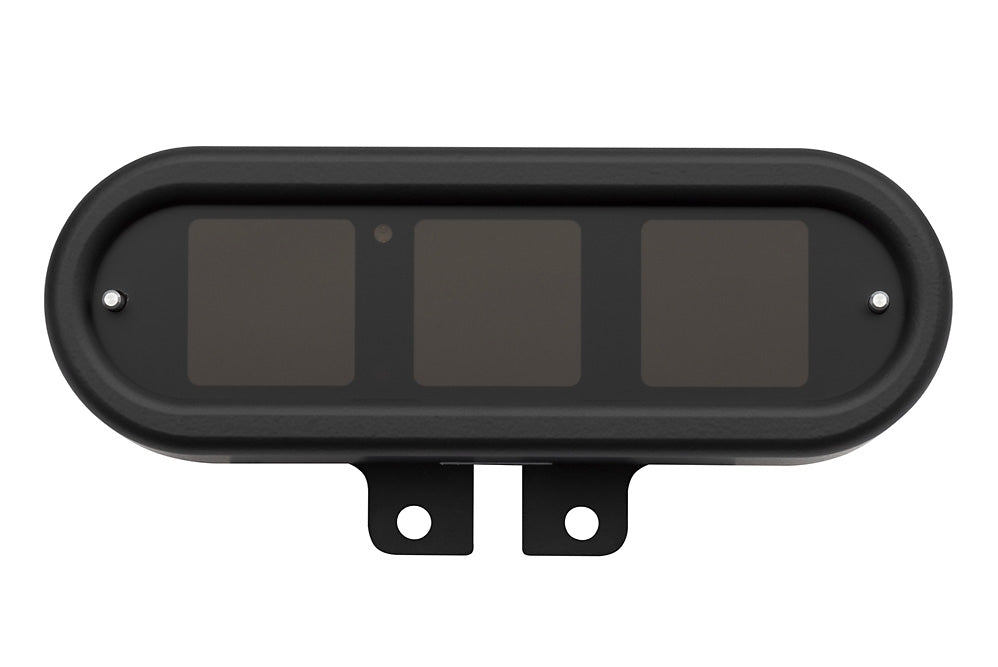

The MLX-9000 Series is the latest generation of Dakota Digital popular bar-mount instrument system.  Loaded with features and ability to customize to your liking, integrated push button switches allow for accessible operation, even with gloves.
The MLX-9200 and MLX-9400 Universal models allow for interface with a variety of bikes, either OEM or highly modified.

User-selectable RGB Lighting allows color selections to suit your bike and theme, movable displays allow you to place readouts in a variety of display locations, or even a selection between a digital or bar-graph style of readout for several displays!  Furthermore, you can select between the oval or spike shaped units, along with an option of a Chrome or Black housing.  If you’ll be using this outside of the USA, you can also select between Imperial or Metric displays!

The MLX-9000 Series allows for further display expansion as well, including Air Suspension Pressure readouts, Boost Pressure or even a GPS-powered Compass.  The MBM Series of Expansion Models allow this to take place with ease!

Dimensions:
MLX-9200:  6.5" x 2"
MLX-9400: 5-7/8" x 2"

Standard readouts include:
Speedometer
Tachometer
Odometer
Trip Odometer A & B
Service Meter
Hour meter
Oil Temp (when sensor is purchased separately)
Oil Pressure (when sensor is purchased separately)
Voltmeter
Gear Position
Clock
Fuel Level (when utilizing tank-mounted sensor)

Indicator lamps available:
Left & Right turn signal
Check Engine
Low Oil
Security
High Beam
Neutral

Performance readouts:
High Speed Recall
High RPM Recall
0-60 Time
Quarter mile time and speed

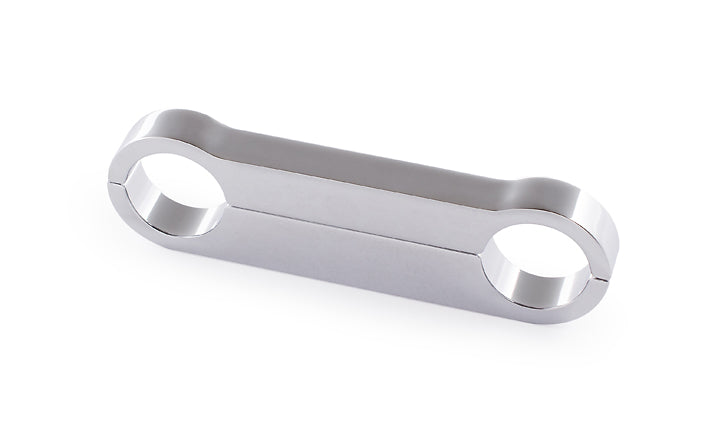

Riser Mounts


From Dakota Digital

Riser Mount for MLX-9000, MLX-5000, MCV-7000, MCL-5000, HLY-50xx and HLY-6000 and series gauges.

  • Attaches directly to risers.
  • Fits all MLX-5000/ 9000, HLY-50xx, HLY-6000 and MCV series gauges.
  • Allows mounting of gauges both above and below handle bar.
  • For use with pull-back risers only.
  • Fits risers with 1", 1-1/4" and 1-1/2" riser diameters with a standard 3-1/2" spacing.



  • BKT-5006 - for 1" risers.
  • BKT-5007 - for 1-1/4" risers.
  • BKT-5008 - for 1-1/2" risers.

All mounting back plates are made of machined aluminum.
Show Quality Triple Chrome Plating

Titan Motorcycle Co. of America Dakota Digital Speedo
Regular price $650.00 USD
Regular price Sale price $650.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:TM-MLX9000
